Description
Key words: washing powder drier, washing powder pressure spray drying tower, synthetic washing powder dryer.
Classification: chemical engineering industry
Case summary: the pressure spray dryer can make the solution, emulsion, suspension and paste material spray dried into granulated dry powder, with high efficiency and high efficiency. For heat sensitive materials, the color, aroma, taste and solubility of the materials can be maintained. The whole system uses hot air medium open circulation material parallel flow drying, production environment is good, can basically realize automatic operation.

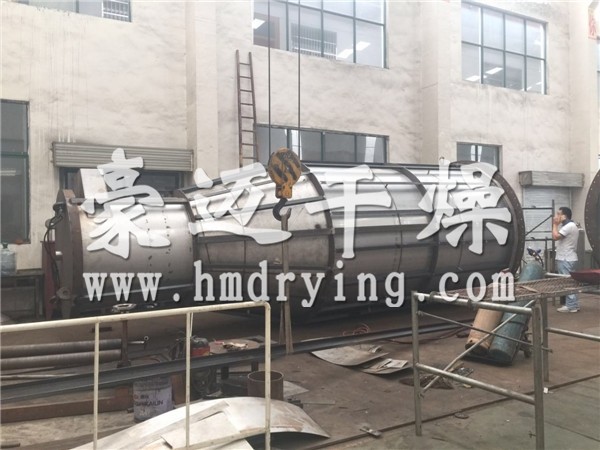

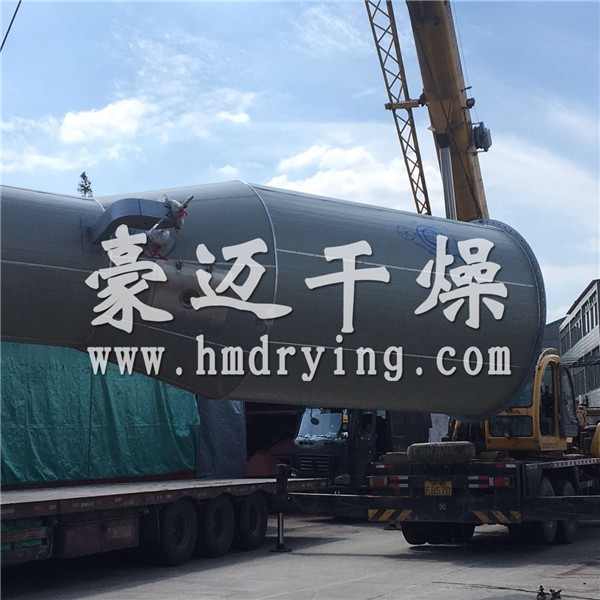

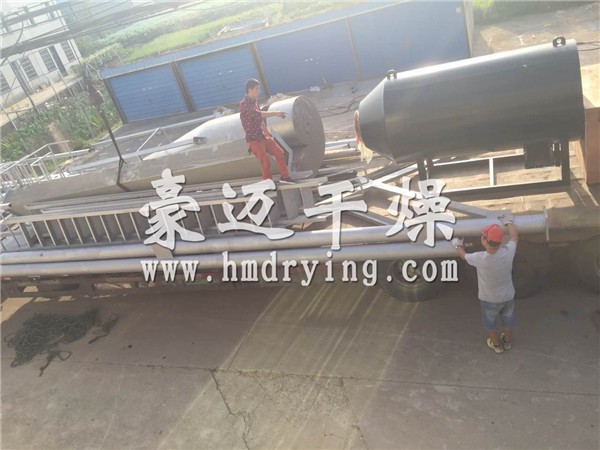

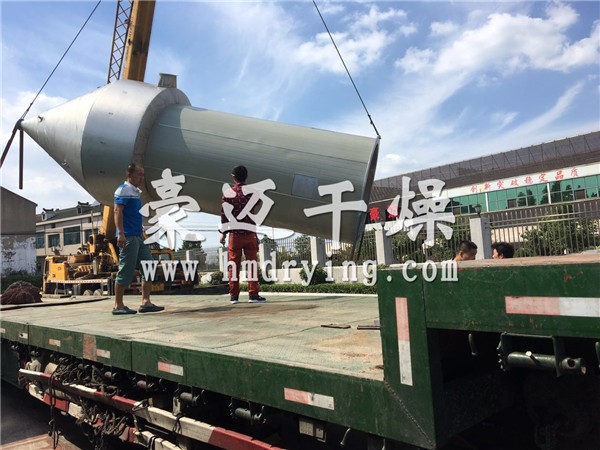

Project Name: washing powder pressure spray drying tower
Device name: YPG-300 pressure spray drying tower system
Equipment material requirements: material contact part is made of 201 stainless steel; the rest is made of carbon steel.
Drying equipment: pressure spray drying tower.
Treatment capacity requirement: 588kg / h;
Emission requirements: the tail gas emission meets the national standard (dust content ≤ 50mg / m3 standard dry air);
Main technical parameters:
1. Drying material parameters:
Material name: washing powder;
Solid content of raw material: 50%;
Final moisture content: 2%;
Liquid treatment capacity: 588kg / h;
Dry product yield: 300kg / h;
2. Process conditions:
Material liquid atomization mode: pressure type;
Contact mode of droplet and hot air: parallel flow type;
Heating mode: direct fired hot blast stove;
Hot air inlet temperature: about 300 ℃;
Exhaust temperature: about 100 ℃
Material collection mode: cyclone separator;
3. Design conditions:
Atmospheric pressure: 760mmhg;
Annual average temperature: 15 ℃;
Relative humidity of external air: 60%;
Moisture content: 8.6g water / kg dry air;
Power supply: three phase four wire 380V, 50 Hz;
Special pressure spray dryer for washing powder:
The pressure spray dryer can make the solution, emulsion, suspension and paste material spray dried into granulated dry powder, with high efficiency and high efficiency. For heat sensitive materials, the color, aroma, taste and solubility of the materials can be maintained. The whole system uses hot air medium open circulation material parallel flow drying, production environment is good, can basically realize automatic operation. Pressure spray dryer is widely used in organic and inorganic chemical materials, resins and latex, egg milk products and food, medicine, ceramics and electronic materials.
